Valley/ridge clip for flat clay bricks
Ridge/arris clip flat bricks
RIDGCLIP-F.FLATBRICK
Register now and access more than 125,000 products
- Stainless steel retaining clip (material 1.4310) with integrated 500 mm stainless steel binding wire
- Clips can be clipped or hammered on easily for efficient use, which eliminates the need for complex, time-consuming and material-intensive drilling
- Equipped with 500 mm stainless steel binding wire
Due to the many different roof tile models and different rebate designs, always check the suitability of the retaining clip for the individual tile type using a sample.
Datasheets(X)
Universal application for cut roof tiles up to a thickness of approx. 17 mm
Fit cut tiles as closely as possible to the roof valley or ridge so that the clip is completely covered by the roll ridge and the ridge tile.

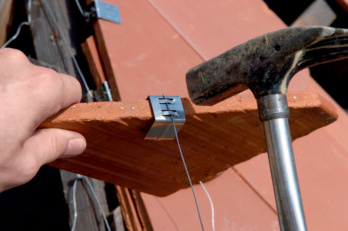

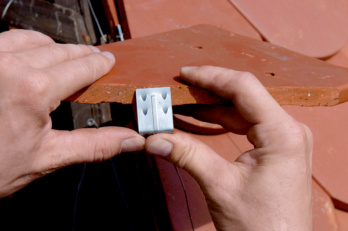

Position the valley/ridge clip at an angle and then fully hammer onto the cut roof tile or clip onto the head rebate, and check that the clip is securely seated.

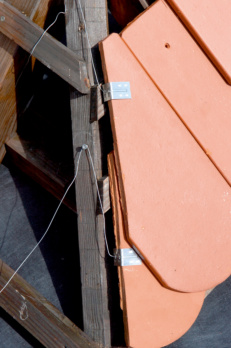

Secure binding wire to the substructure under slight tension, using a fastening material that is at least protected against corrosion (screw or nail).
Material | Stainless steel A2, 1.4310 |
