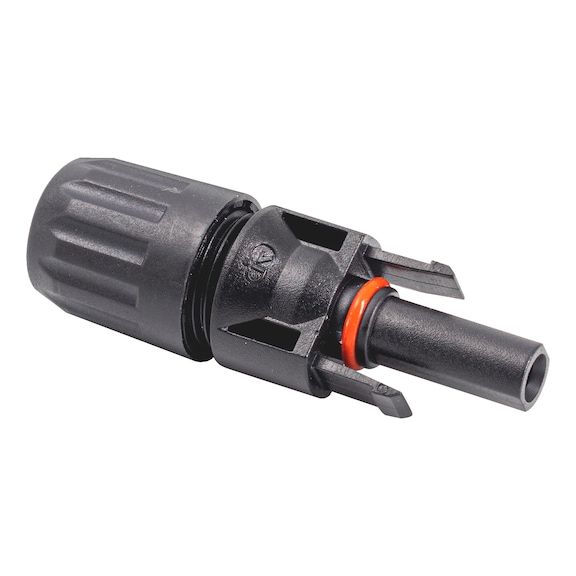

Solar PV connector, flying type MC4

Name: Solar PV connector, flying type MC4
Brand: Würth
SKU: 0978600024

PLGINCON-MC4-FLY-MAL-1000VDC-(2.5-6MM2)

Art.-no. 0978600024

EAN 4065746536714

All versions

Similar products

Individual price display after login

Solar PV connector, flying type MC4

Art.-no. 0978600024

Individual price display after login

Quantity

x 50 pcs

Exclusively for trade customers

Login/Register
Call customer service: +34928189825

Photovoltaic connector MC4, flying type

Designed for outdoor use (IP67).

Contact resistance <1 MΩ.

Safety class II.

Insulation materials: PPO+PA.

Contact material: tin-plated copper.

Flame retardant: UL94V-0.

Crimp connection.

Working temperature: -40ºC to +85ºC.

In accordance with EN 62852 and IEC 62852.

TÜV Rheinland approved.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

Used in all types of photovoltaic installations, especially in the connection of a series of solar panels, inverters etc.

Number of conductors	1 PCS
Min./max. wire cross section	2.5-6 mm²
Nominal current	30 A
Nominal voltage	1000 V/DC
Flammability	Self-extinguishing in accordance with UL94 V0
Number of electrical poles	1 PCS
Material of housing	PPO/PA
Colour	Black

Additional accessory:

Product

Description

Quantity

Price
/PU

Crimping tool Mobile Crimp Tool for replaceable crimping inserts

CRMPPLRS-VARIABLE

Art.-no. 0714107300

x 1 pcs

Crimping insert For Mobile Crimp Tool crimping pliers

CRMPINRT-(F.CRMPPLRS-SOLAR-TYP1-MC4)

Art.-no. 0714107328

x 1 pcs

Stripping tool for solar cables

STRTL-SOLAR-8,5-(2,5-6SMM)-L83MM

Art.-no. 0714107331

Small, handy design

x 1 pcs
