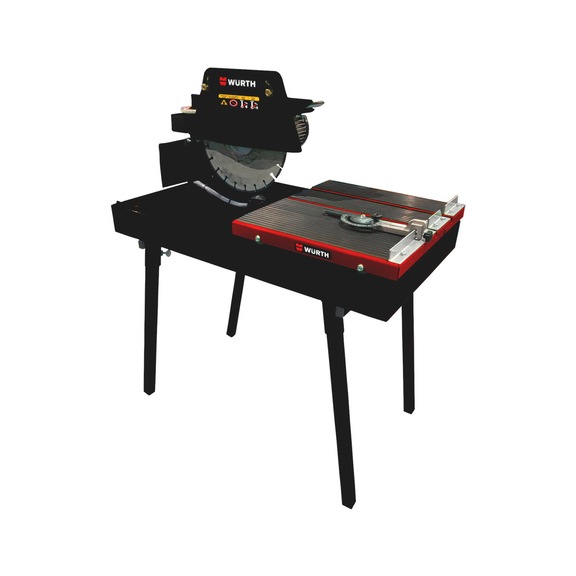

Cutting table WAC 100

Name: Cutting table WAC 100
Brand: Würth
SKU: 0701410100

TLECTR-EL-(WAC 100)

Art.-no. 0701410100

EAN 4068362313912

All versions

Similar products

Individual price display after login

Cutting table WAC 100

Art.-no. 0701410100

Individual price display after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service: +34928189825

Professional cutting table for construction materials such as: Brick, terrazzo, cobblestone, kerb, tiles, marble, stoneware, ceramics etc. Offers maximum performance on the construction site by cutting and bevelling pieces up to 65 cm long and 100 mm high. Cutting disc not supplied.

Features

Cutting head can be tilted up to 45° for mitre cutting.

300 and 350 mm diameter cutting discs.

Water pump disc cooling system.

Makes angle grinder-type cuts.

Cutting guide with angle millimetre ruler.

Fitted with legs.

Advantages

Allows different types of cuts with a single machine: straight, angle grinding and mitre. Cuts materials up to 100 mm high and 65 cm long.

Easy and convenient to carry.

Water pump disc cooling system.

Allows the cutting length to be changed by moving the column of the cutting head to suit the size of the material to be cut.

Benefits

Enables various types of cuts with one machine, saving money on buying multiple machines.

Wet cutting lowers dust emissions, reducing the risk of occupational diseases.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Power input	2.2 kW
Max. idle speed	2800 rpm
Max. cutting disc diameter.	350 mm
Bore hole	25.4 mm
Max. cutting length	645 mm
Max. cutting depth	100 mm
Table length	1220 mm
Table width	686 mm
Washer diameter	0 mm
Length	1220 mm
Width	686 mm
Height	1080 mm

Technical data
Power input	2,200 W
Voltage	230 V
Engine speed	2,800 rpm
Cooling pump power	50 W
Cooling pump voltage	230 V
Maximum blade diameter	350 mm
Central disc hole diameter	25.4 mm
Cutting length (350 mm diameter disc)	650 mm
Water tray capacity	45 L
Dimensions (WxHxD) mm	1,214 x 830 x 1,191
Net weight without water	72.5 kg
