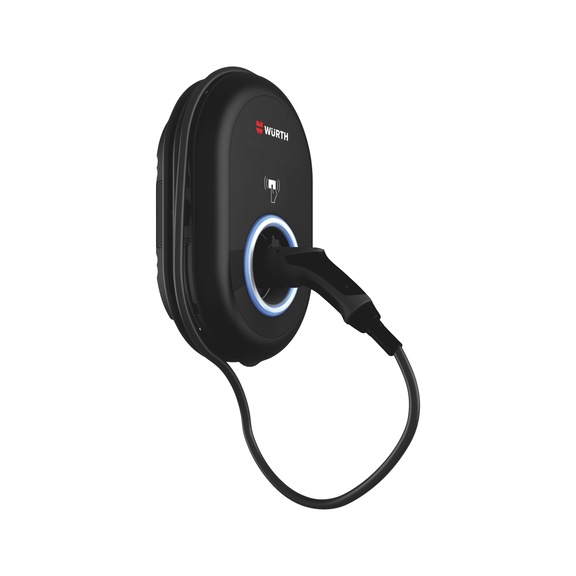

Basic charger with cable e-Wübox

Name: Basic charger with cable e-Wübox
Brand: Würth
SKU: 0510650621

WLBOX-(E-WUEBOX BASIC)-22KW-TYP2-CBL

Art.-no. 0510650621

EAN 4065746273626

All versions

Individual price display after login

Basic charger with cable e-Wübox

Art.-no. 0510650621

Individual price display after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service: +34928189825

e-Wübox Basic electric vehicle charger with integrated cable

Features

Maximum load rating of 7.4 kW or 22 kW.

Charging mode 3.

Type 2 connected cable measuring 5 m coiled around the charger.

LED RGB circle for indicating the charging status.

Integrated 6 mA DC leakage current sensor.

Installation on the wall or using the floor stand (hardware included).

Continuous adjustment of maximum charging current (range 10-32 A)

Charging authorisation via RFID card (function can be deactivated). Supplied with one master card and two user cards.

Externally activated access functionality (remote charging activation).

Load balancing option based on consumption using an external MID meter or external current transformer (see compatible accessories table).

Complies with CE, EV Ready, IEC 61851-1, IEC 61851-22, IEC 60950-1 and IEC 60950-22 certifications.

Advantages

Suitable for indoor and outdoor use due to robust design.

Highly versatile in terms of applications due to access control via RFID.

Integrated 6 mA DC leakage current detection, meaning there is no need to install type B differential protection.

Benefits

Load balancing means that the power delivered to the charger can be limited based on availability at any given time, meaning there is no need to increase the contracted power.

The charging station can be integrated with parking automation systems, time switches or external keys, photovoltaic inverters etc.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

Applications that do not require management of charging equipment, monitoring or assigning costs to users.

• Households: Single-family homes and community parking.

• Private company parking or business car parks.

• Covered semi-public parking and hotels.

Nominal voltage	400 V
Power output	22 kW
Charging current	32 A
Socket type	Type 2
Other standard	IEC 61851, IEC 60950-1, IEC 60950-22, IEC 62196-1, IEC 62196-2
IP protection class	IP 54
Min./max. temperature conditions	-35 to 55 °C

Additional accessory:

Product

Description

Quantity

Price
/PU

Foot stand for charger e-Wübox

FTSTAND-(F.ELVEH-CHRG)-(E-WUEBOX)

Art.-no. 0510650995

Foot stand for installation of e-Wübox electric vehicle charger.
