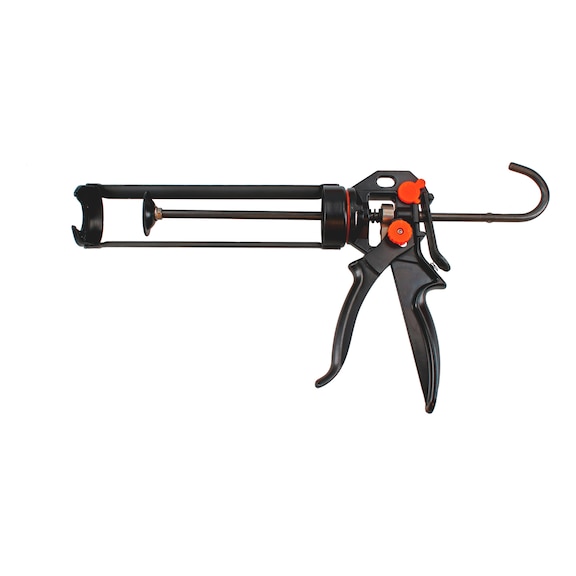

Application gun for sealants and adhesives DOBLEPOWER 1225
MANCLKGGUN-CART-(DOBLEPOWER 1225)
Register now and access more than 125,000 products
Features
- Double force ratio on each gun for different applications by simply turning the bottom wheel one way or the other.
- 25:1 assembly adhesives that are difficult to extrude.
- 12:1 silicones.
- Made of high-strength, impact-resistant steel.
- Double system: switch between drip reduction and no drip reduction by turning the top wheel to the right or left for inline work or for applications where it is necessary to avoid dripping as much as possible and thus avoid staining.
- Ergonomic trigger grip and large lever to apply force in a controlled manner.
- Rotating body for improved ease of use and application of the bead.
- Low-friction plunger shaft for increased comfort during application.
Advantages
- Finished in high-strength epoxy paint with corrosion protection.
- With built-in hook for hanging up in work areas.
- Convenient decompressor right on the thumb for easy operation.
Benefits
- Reduces operator fatigue due to the balanced weight.
- Rotating body for better aiming of the nozzle in the working area.
- One gun with two uses: for applying silicones and assembly adhesives.
- Optimal drip reduction to prevent staining in sensitive areas.
Assembly adhesives are often difficult to extrude, especially in winter, and high levels of force must be applied to the gun.
We recommend using a gun with a high multiplication ratio and, in winter, immersing any cartridges/sausage packs that are going to be used in water at 25-30 °C to facilitate extrusion and increase comfort while working.
These instructions are merely recommendations based on our experience. We recommend performing tests for each new type of application or surface to be treated.
Datasheets(X)
The DOBLEPOWER 1225 gun for 310 ml cartridges is mainly used for silicone applications (280/290/300/310 ml cartridge) and for both hard and soft assembly adhesives in 290/310 ml cartridges.
Design | Pressure cylinder |
Material | Iron |
Colour | Black, Orange |
Thrust force | 4000 N |
Suitable for | 300 ml cartridge |
